Polypropylene configurations

PP Laboratory Furniture

The reference range combines PP wall and island benches with PP fume-hood, storage, and shelving configurations. Selection should follow the substances handled, cleaning method, equipment, utilities, and the project's ventilation and safety review.

Final materials, dimensions, performance requirements, and compliance criteria must be confirmed in the quotation and technical review.

Request a quotation

PP island laboratory bench with sink and storage

Configuration overview

Wall and island PP bench references
PP fume hood, cabinet, and rack options
Material selection tied to the process brief

Information to confirm

01Substances and cleaning agents
02Worktop and joint requirements
03Utilities and extraction interfaces
04Storage and access pattern

Typical planning contexts

Chemical preparation areas
Wet-process laboratories
Corrosive-work support zones

Product planning

Decisions that shape the final configuration

Use these planning points to organize the room, equipment, service, and operating information needed before a configuration is confirmed.

Document the exposure

List the substances, concentrations, temperatures, spill scenarios, and cleaning agents expected at each position. Material suitability should be reviewed against that actual exposure rather than inferred from the product name alone.

Separate furniture from ventilation decisions

A PP enclosure or cabinet does not define the required airflow, discharge, segregation, or emergency controls. Coordinate the furniture scope with the responsible process, ventilation, and safety teams.

Confirm fabrication and interfaces

Review sheet grade and thickness, joint method, worktop, hardware, sink, fixtures, service openings, and maintenance access on the approved product schedule before production.

Technical brief

Configuration details to confirm

These fields provide a practical review framework rather than fixed model claims. Record the agreed selection in the quotation, drawings, and technical submittal before production.

Reference construction: The supplied brochure shows detachable PP cabinet configurations and lists 8 mm PP body panels for selected references; resin grade, thickness, fabrication, and reinforcement remain model-specific confirmation items.
Work surfaces: PP, solid phenolic, epoxy-resin, and ceramic worktops appear as reference options across the range. The final surface and joint details must match the intended process.
Product formats: Reference photographs cover wall benches, island benches, a PP fume hood, a reagent cabinet, and a reagent rack.
Service interfaces: Water, drainage, electrical, gases, extraction, and service-fixture positions are coordinated from the room and utility drawings.
Hardware and access: Hinges, tracks, handles, adjustable feet, removable panels, and maintenance access are recorded in the approved configuration.
Required submittals: Provide the room plan, chemical and cleaning brief, equipment list, utility schedule, quantities, destination, and applicable project requirements.

Reference model guide

YOJIA inquiry models and reference parameters

Use these original YOJIA reference codes to compare common configurations and prepare an inquiry. They are planning identifiers, not copies of another manufacturer's models or fixed production guarantees.

Reference model	Configuration	Reference dimensions	Selection notes
`YJ-PP-WB-1500`	PP wall laboratory bench	1500 × 750 × 850 mm	Wet or corrosive-work support reference with project-selected worktop and joints.
`YJ-PP-IB-3000`	PP island laboratory bench	3000 × 1500 × 850 mm	Double-sided PP bench with optional sink, services, storage, and reagent rack.
`YJ-PP-FH-1500`	PP benchtop fume hood	1500 × 850 × 2350 mm	PP enclosure reference; chemical exposure and complete ventilation design require review.
`YJ-PP-SC-900`	PP storage cabinet	900 × 450 × 1800 mm	General PP storage reference; substance compatibility and ventilation needs are not assumed.

Reference parameter range

Reference body material: Selected brochure configurations identify 8 mm PP body panels. Resin grade, thickness, reinforcement, joint method, and hardware remain model-level selections.
Bench modules: 1500 mm wall-bench and 3000 mm island-bench references; final bays follow the room plan and fabrication review.
Work surfaces: PP, solid phenolic, epoxy-resin, or ceramic surfaces may be discussed; suitability depends on actual exposure and cleaning.
Exposure brief: List substances, concentration, temperature, contact time, spill potential, and cleaning agents for material review.
Services and extraction: Sink, drainage, taps, outlets, gases, duct connections, fan, controls, and commissioning are defined by the project.
Ordering rule: A PP product name or YJ code does not guarantee universal chemical compatibility; approved materials and drawings control supply.

All dimensions are nominal planning references. Final materials, thicknesses, loads, ventilation criteria, fixtures, interfaces, compliance evidence, and supplied scope must be recorded in the approved quotation and technical documents.

PRODUCT VIEW

Reference configurations

Images show reference configurations. Confirm the exact supplied model, finish, dimensions, fixtures, and accessories in the final quotation.

White PP island laboratory bench with sink, service fixtures, and under-bench cabinets

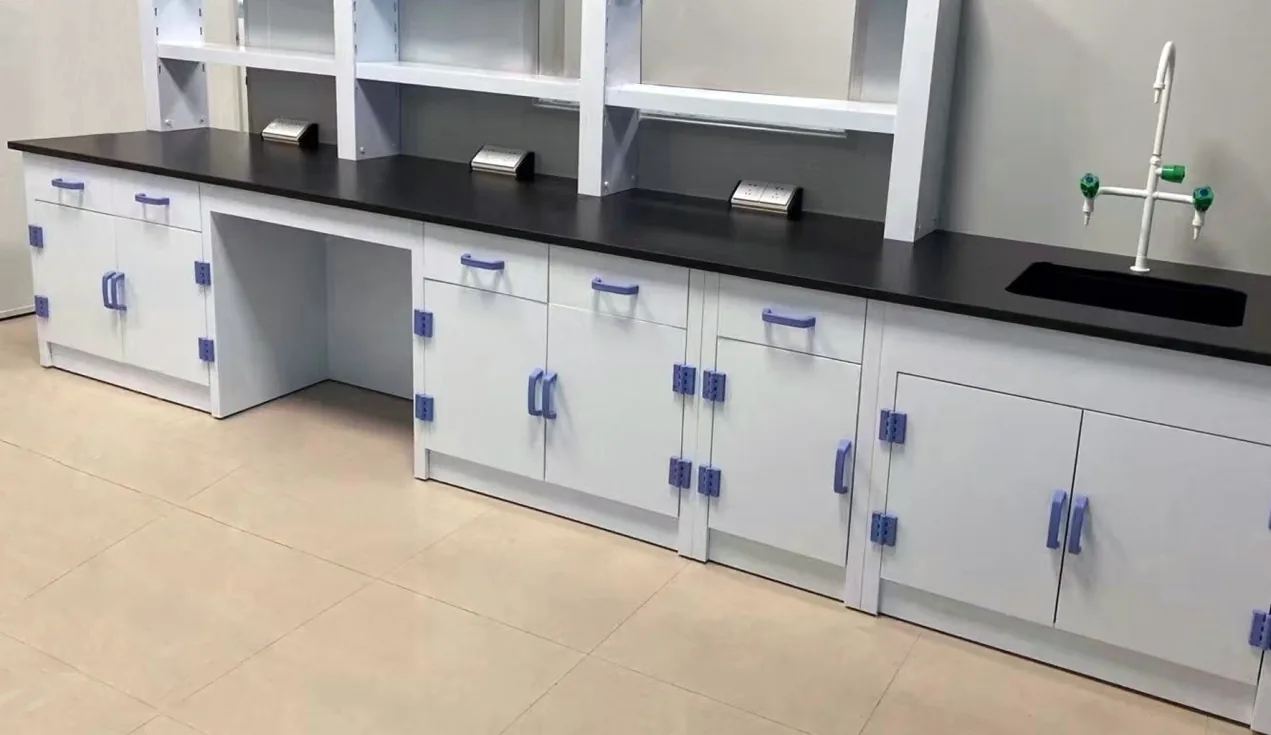

White PP wall laboratory bench with sink, reagent shelving, and storage cabinets

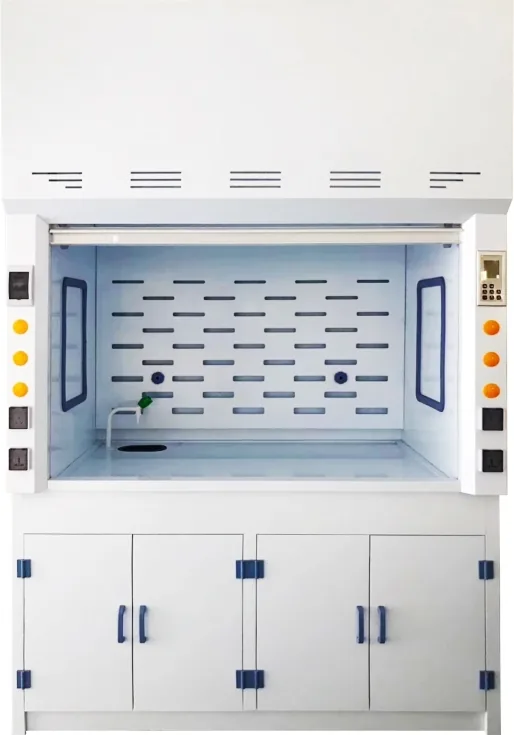

PP laboratory fume hood with sash, service panel, and base storage

PP laboratory reagent cabinet with glazed upper doors and ventilated lower doors

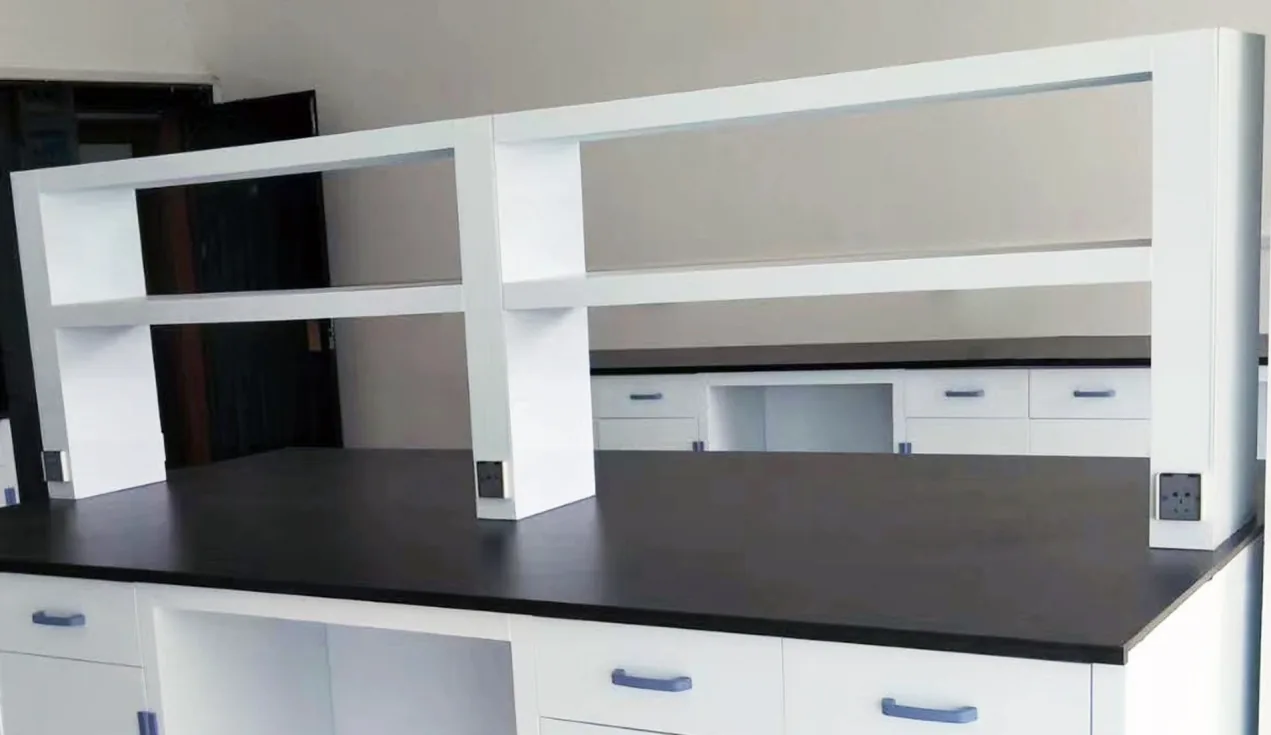

PP reagent rack installed above a laboratory island bench

Buyer questions

Before requesting a quotation

Clear project inputs help the team identify the right configuration and the details still requiring technical review.

01Does PP furniture suit every chemical laboratory?

No. Suitability depends on the actual substances, concentration, temperature, contact time, cleaning method, joints, and project safety requirements. Those inputs must be reviewed before selection.

02Can PP benches and a PP fume hood be quoted together?

They can be coordinated as one room package when the bench layout, extraction interface, utilities, storage, and responsible engineering scope are clearly defined.

03Are the brochure dimensions and materials fixed?

The images and listed constructions are reference configurations. Final dimensions, PP grade and thickness, worktop, fixtures, services, and supplied scope are confirmed in the quotation and drawings.

RFQ / Project inquiry

Discuss this product family

Share the room plan, quantity, destination, and technical requirements for a project-specific response.
